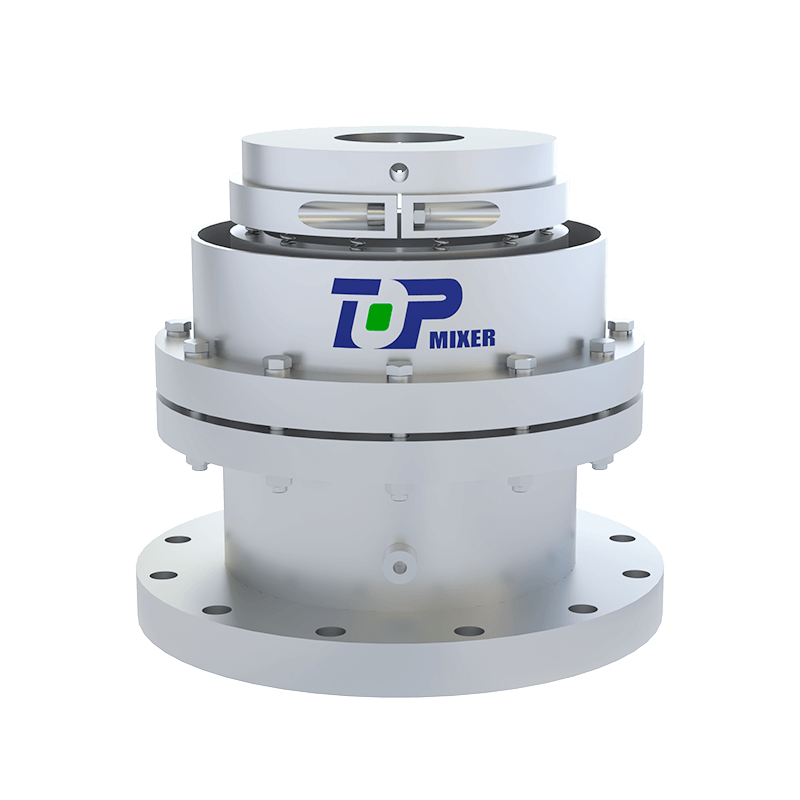

Typus CCXII Single-finem Mechanica Sigillum Reactors

Haec sigillorum series maxime usus est sigillum mechanicum in reactoribus vitreis instructis, permittens varias compositiones materiales et transversis sectionibus ad necessitates diversarum conditionum operantium.
Pretium Postulare
Impellere Configurare

Haec sigillorum series maxime usus est sigillum mechanicum in reactoribus vitreis instructis, permittens varias compositiones materiales et transversis sectionibus ad necessitates diversarum conditionum operantium.

Nota

Currens parametri

Structura: Unius faciei finis, fons parvus, PTFE limae genus tubi
Pressura: ≤0.6MPa
Temperature: -40~150℃
Celeritas: ≤500 rpm
Scapus diametri: 30~ 150mm
Media: Instrumenta mordantia valida sicut acidum sulphuricum, acidum nitricum, et acida organica (sine particulis suspensis)

Parametri Producti

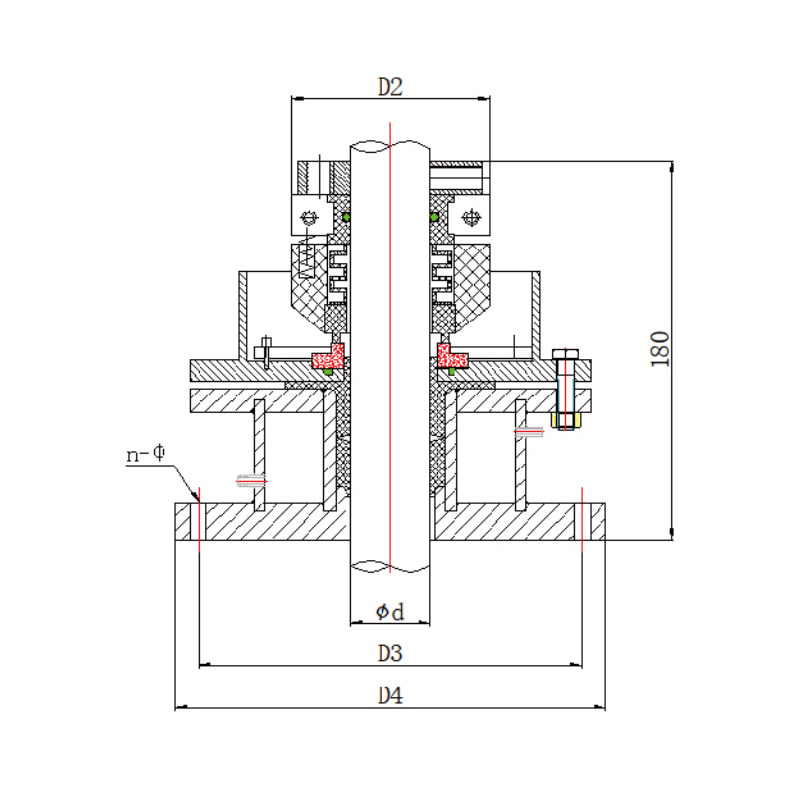

69 Standard Dimensiones

d D₁ D₂ D₃ n-Φ
42 90 140 170 6-Φ16
50 100 170 200 8-Φ16
60 110 190 220 10-Φ16
70 120 250 280 16-Φ16
76 130 250 280 16-Φ16
80 130 250 280 16-Φ16
89 140 250 280 16-Φ16
95 150 300 330 20-Φ16


79 Standard Dimensiones

d D₁ D₂ D₃ n-Φ
40 90 130 160 4-Φ18
50 100 150 185 4-Φ18
65 115 170 205 4-Φ18
80 130 200 235 8-Φ18
95 150 200 235 8-Φ18
102 150 255 290 8-Φ18
89 140 250 280 16-Φ16
95 150 300 330 20-Φ16


91 Standard Dimensiones

d D₁ D₂ D₃ n-Φ
40 90 130 160 4-Φ18
50 100 150 190 4-Φ18
65 115 170 210 4-Φ18
80 130 200 240 8-Φ18
95 150 225 265 8-Φ18
110 165 280 320 8-Φ18
125 180 280 320 8-Φ18
140 195 335 375 12-Φ18
